Heap Data Structure
In this tutorial, you will learn what heap data structure is. Also, you will find working examples of heap operations in Python.
Heap data structure is a complete binary tree that satisfies the heap property. It is also called as a binary heap.
A complete binary tree is a special binary tree in which
- every level, except possibly the last, is filled
- all the nodes are as far left as possible
Heap Property is the property of a node in which
- (for max heap) key of each node is always greater than its child node/s and the key of the root node is the largest among all other nodes;
- (for min heap) key of each node is always smaller than the child node/s and the key of the root node is the smallest among all other nodes.
Some of the important operations performed on a heap are described below along with their algorithms.
Heapify is the process of creating a heap data structure from a binary tree. It is used to create a Min-Heap or a Max-Heap.
- Let the input array be
- Create a complete binary tree from the array
- Start from the first index of non-leaf node whose index is given by
n/2 - 1.
- Set current element
- The index of left child is given by
2i + 1and the right child is given by
2i + 2.
leftChildis greater than
currentElement(i.e. element at
rightChildis greater than element in
- Repeat steps 3-7 until the subtrees are also heapified.
Heapify(array, size, i) set i as largest leftChild = 2i + 1 rightChild = 2i + 2 if leftChild > array[largest] set leftChildIndex as largest if rightChild > array[largest] set rightChildIndex as largest swap array[i] and array[largest]
To create a Max-Heap:
MaxHeap(array, size) loop from the first index of non-leaf node down to zero call heapify
For Min-Heap, both
rightChild must be smaller than the parent for all nodes.

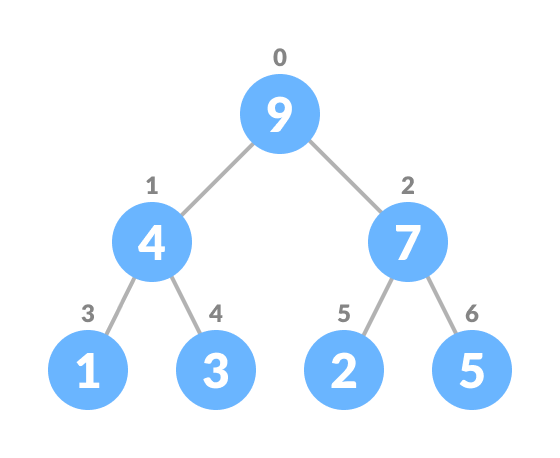

Insert Element into Heap
Algorithm for insertion in Max Heap
If there is no node, create a newNode. else (a node is already present) insert the newNode at the end (last node from left to right.) heapify the array
- Insert the new element at the end of the tree.
- Heapify the tree.
For Min Heap, the above algorithm is modified so that
parentNode is always smaller than
Delete Element from Heap
Algorithm for deletion in Max Heap
If nodeToBeDeleted is the leafNode remove the node Else swap nodeToBeDeleted with the lastLeafNode remove noteToBeDeleted heapify the array
- Select the element to be deleted.
- Swap it with the last element.
- Remove the last element.
- Heapify the tree.
For Min Heap, above algorithm is modified so that both
childNodes are greater smaller than
Peek (Find max/min)
Peek operation returns the maximum element from Max Heap or minimum element from Min Heap without deleting the node.
For both Max heap and Min Heap
Extract-Max returns the node with maximum value after removing it from a Max Heap whereas Extract-Min returns the node with minimum after removing it from Min Heap.
/* Max-Heap data structure in Python */ def heapify(arr, n, i): largest = i l = 2 * i + 1 r = 2 * i + 2 if l < n and arr[i] < arr[l]: largest = l if r < n and arr[largest] < arr[r]: largest = r if largest != i: arr[i],arr[largest] = arr[largest],arr[i] heapify(arr, n, largest) def insert(array, newNum): size = len(array) if size == 0: array.append(newNum) else: array.append(newNum); for i in range((size//2)-1, -1, -1): heapify(array, size, i) def deleteNode(array, num): size = len(array) i = 0 for i in range(0, size): if num == array[i]: break array[i], array[size-1] = array[size-1], array[i] array.remove(size-1) for i in range((len(array)//2)-1, -1, -1): heapify(array, len(array), i) arr =  insert(arr, 3) insert(arr, 4) insert(arr, 9) insert(arr, 5) insert(arr, 2) print ("Max-Heap array: " + str(arr)) deleteNode(arr, 4) print("After deleting an element: " + str(arr))
Heap Data Structure Applications
- Heap is used while implementing a priority queue.
- Dijkstra’s Algorithm
- Heap Sort
